4L60E P0748: What It Means and How to Fix It

You scan a 4L60E-equipped truck or F-body and get P0748 — Pressure Control Solenoid Circuit Electrical. The complaint that comes with it is almost always the same: the transmission slams into gear, the 1-2 shift feels like someone kicked the back bumper, and shift feel never softens no matter how gently you drive. That harshness is not a coincidence, and it is not the transmission "getting worse." It is the exact behavior GM designed into the failure mode.

This article walks the P0748 diagnosis on a 4L60E the way a shop does it: understand what the code actually reports, test the circuit with a meter before spending a dollar, rule out the two causes that look like a bad solenoid but are not, and then fix it correctly.

What P0748 Actually Reports

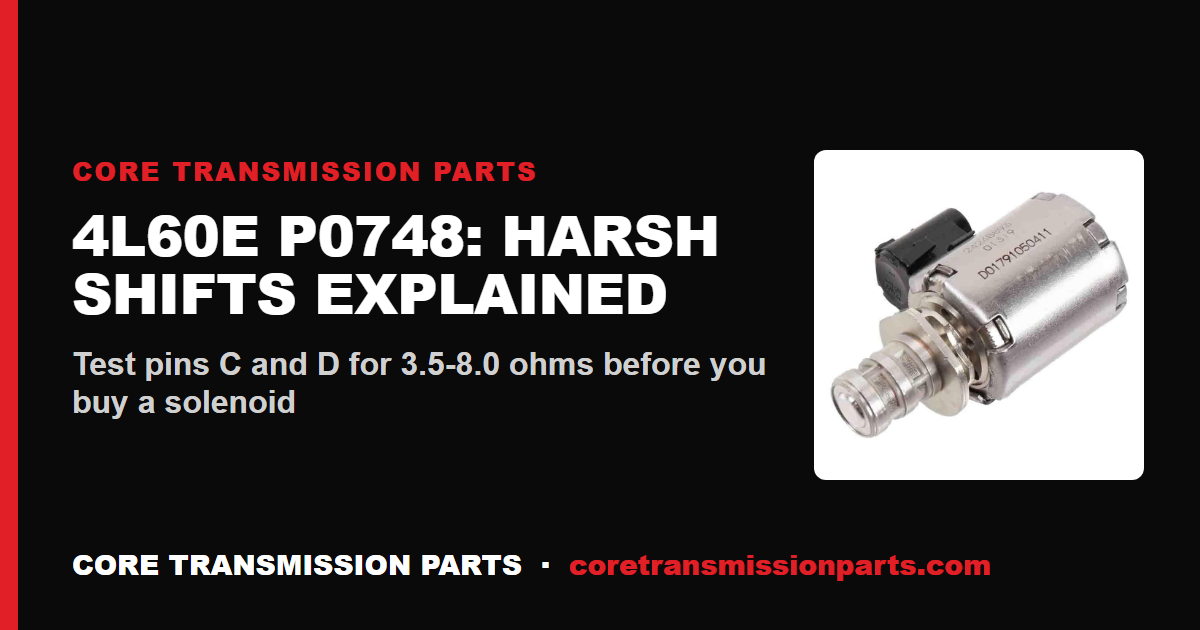

The pressure control (PC) solenoid — also called the EPC, or electronic pressure control solenoid — is the device that sets transmission line pressure. It is not an on/off solenoid like the 1-2 and 2-3 shift solenoids. Per GM's factory diagnostic for the electronically controlled Hydra-Matic, the PCM "compares the Accelerator Pedal Position (APP) Sensor voltage, engine RPM, and other inputs in order to determine the appropriate line pressure for a given load," and then "regulates the pressure by applying a varying amperage to the PC Sol. Valve," with applied amperage varying from 0.1 to 1.1 amps (GM factory service information, DTC P0748).

Higher commanded current means lower line pressure. That inverse relationship is the whole story behind the harsh-shift complaint.

The PCM monitors the current flowing back through that circuit. Per the GM procedure, the code sets when system voltage is 10–16.5 volts, the engine has been running above 475 RPM for at least seven seconds, and the difference between commanded and measured return amperage exceeds 0.16 amps for 200 milliseconds. In plain terms: the PCM asked for a specific current, did not get it, and concluded the circuit or the solenoid is open or shorted.

Why the Truck Shifts Like a Sledgehammer

The GM procedure spells out exactly what happens next. When P0748 sets, "the PCM disables the PC Sol. Valve, defaulting the transmission to maximum line pressure," and it also freezes the shift adapts. Notably, GM classifies this as a type D DTC — the PCM does not illuminate the Malfunction Indicator Lamp. That is why so many of these show up as "no check engine light, but it bangs into gear."

Maximum line pressure is a protective default: GM would rather apply clutches too hard than let them slip and burn. But it is punishing on hard parts. Wayne Colonna, writing for Transmission Digest, describes the same signature — "there is no amperage command to the EPC solenoid therefor the line pressure is at maximum," producing harsh engagements and harsh shifts. Left alone, that pressure works on the 2-4 band, the 3-4 clutch pack, and the drums on every shift.

The Diagnosis, in Order

Step 1: Read the freeze frame before you clear anything

GM's own procedure flags this: "Before clearing the DTCs, use the scan tool in order to record the Failure Records for reference. The Clear Info function will erase the data." An intermittent P0748 is far easier to chase when you know the voltage, RPM, and temperature it set at.

Step 2: Command the solenoid and watch actual vs. reference current

With the engine running and the transmission in Park, use the scan tool's transmission output control function to command 0.1–1.0 amps while watching PC Ref. Current against PC Act. Current. If actual tracks reference within 0.16 amps, the circuit is functioning at the moment you are testing it — you are chasing an intermittent, and the fault is in the wiring, not the solenoid. If actual does not track, keep going.

Step 3: Measure resistance at the case connector

This is the test that decides the repair, and it is the one most people skip. On the 4L60E, the pressure control solenoid lands on pins C and D of the case pass-through connector.

ATRA Technical Bulletin #269 publishes the 4L60E solenoid and switch resistance chart. The values that matter here:

• Pressure control (EPC) solenoid, pins C & D: 3.5–8.0 ohms
• TCC solenoid, pins E & T: 20–40 ohms
• 1-2 shift solenoid (pins E & A) and 2-3 shift solenoid (pins E & B): 20–40 ohms each
• 3-2 control solenoid, pins E & S: 9–14 ohms
• Output speed sensor: 1260–1540 ohms

Source: ATRA Technical Bulletin #269, "GM 4L60-E Solenoid/Switch Resistances."

If the reading at the case connector is out of range, the fault is inside the transmission — either the solenoid itself or the internal harness. If it is in range at the connector but the code still sets, the fault is upstream in the vehicle harness or the PCM side.

The GM procedure adds a second check most techs forget: measure resistance from the PC solenoid terminal to the transmission case. It should read greater than 9 ohms. A low reading there means the circuit is grounding out against the case — a chafed internal harness, not a bad solenoid.

Step 4: Split solenoid from harness

If the case-connector reading is out of range, drop the pan, disconnect the internal harness from the PC solenoid, and measure the solenoid directly. Per the GM procedure: if the solenoid alone is in spec, replace the internal wiring harness. If the solenoid alone is out of spec, replace the solenoid. This one measurement is the difference between the right part and a wasted one.

Step 5: Wiggle-test before you condemn anything

GM's diagnostic aids call for inspecting the transmission connector for a bent terminal, a backed-out terminal, poor terminal tension, a chafed wire, or a broken wire inside the insulation — and, "when diagnosing for an intermittent short or open, massage the wiring harness while watching the test equipment for a change."

Sonnax makes the same point about sequence in its valve body guide: "If electronic-related, test the resistance value as you wiggle the circuit before disconnecting." Once you unplug it, you have destroyed the evidence for an intermittent.

Two Causes That Are Not the Solenoid

1. A lean-running engine (the E85 trap)

This one costs shops real money. Per Transmission Digest, a common pattern is no amperage command to the EPC solenoid and maximum line pressure, with no transmission codes stored — only lean codes in the engine controller, and often an ABS or vehicle stability control lamp lit. Colonna notes the complaint is "prevalent on Chevrolet Silverados with the 5.3 non-flex fuel engine," and the cause is a lean-running engine, one source being ethanol-based fuel such as E85 in a non-flex-fuel vehicle. The correction is to check the fuel, drain and refill with a non-ethanol blend if that is the problem, or properly diagnose the lean condition. Replacing the EPC solenoid there fixes nothing.

The tell: harsh shifts with no transmission DTC set, but lean codes present. If you have a real P0748 stored, this is not your problem — but confirm the code is actually there before you open the pan.

2. Fluid contamination and pressure regulator bore wear

A P0748 is an electrical fault, but on a high-mileage 4L60E it rarely arrives alone. If the unit has been running at maximum line pressure for a while, or was slipping before the code appeared, check the hydraulic side while you are in there. Sonnax notes that pressure regulator valve bore wear "allows leakage and contributes to erratic pump slide movement," producing erratic line pressure, low line rise, 3-4 clutch failure, excess pump noise, and reverse chatter. Their published detection method: a dyno test showing low line pressure during boost conditions — look for 50–100 psi less than specified in Reverse — or the vehicle symptoms of clutch slippage, reverse chatter, and 3-4 clutch failure. Sonnax also warns that boost valves should be checked for leakage at the same time the pressure regulator valve is addressed.

The Fix

Once the resistance test has told you which side is bad, the repair is straightforward:

• Solenoid out of spec at pins C & D: replace the EPC pressure control solenoid.
• Solenoid in spec, case connector out of spec: replace the internal wiring harness.
• Low resistance to case: internal harness chafe — replace the harness and find the rub point.

The 4L60E EPC pressure control solenoid (OEM 24248893) covers 1993–2008 applications. If your measurement pointed at the harness instead, the 4L60E internal wiring harness with TCC lock-up solenoid (OEM 350-0025, 93-02) is the correct replacement for that side of the fault.

Handle the case connector correctly

ATRA's bulletin includes handling rules for the pass-through connector that prevent a comeback:

• To remove it, squeeze the two tabs toward each other and pull straight up. Limit twisting or wiggling during removal — this bends the pins.
• Do not pry the connector off with a screwdriver or any other tool.
• To install, orient the pins by lining up the arrows on each half, then push straight down into the transmission without twisting or angling the mating parts. It should click into place with a positive feel or sound.
• Whenever the pass-through connector is disconnected with the engine running, multiple DTCs will set. Clear them after reconnecting.

Replace While You Are In There

The pan is already down and the fluid is already out. These add almost no labor:

• Filter and pan gasket — non-negotiable on any pan-off job.
• The other solenoids. If the unit has 150,000-plus miles, the 1-2, 2-3, TCC, 3-2 control, and PWM solenoids have the same age and the same fluid history as the one that just failed. A 4L60E master solenoid kit covering EPC, shift, TCC, 3-2 and PWM replaces the whole set in one pass.
• Internal harness if it is original and the connector terminals show any tension loss. Test it per ATRA's chart across every pin, not just C and D.
• Transmission fluid pressure switch assembly (PSA) if it is contaminated — it sits in the same valve body area and is a common source of unrelated codes afterward.

Browse the full transmission solenoid catalog or the complete 4L60E parts collection to match your year and application.

Cost and Effort

This is a pan-off, valve-body-area job, not a teardown. The transmission stays in the vehicle.

• Difficulty: moderate DIY. If you can drop a transmission pan and use a digital multimeter, you can do this.
• Typical labor: roughly 1.5–3 hours for solenoid replacement with the transmission in the vehicle, depending on exhaust and crossmember clearance. Internal harness replacement sits at the upper end because the connector has to come out of the case cleanly.
• Tools: digital multimeter, a scan tool with transmission output control (bidirectional) capability, drain pan, torque wrench, and a fresh filter and gasket.
• Fluid: a pan drop takes roughly 5–6 quarts on most 4L60E applications. Use the fluid specified for your model year and refill to the level indicated by the dipstick procedure in your service information.

The expensive version of this repair is the one where a solenoid gets replaced without a meter, the code comes back, and then a harness gets replaced without a meter. Ten minutes with a DMM at pins C and D avoids both.

FAQ

Will P0748 turn on my check engine light?

Often it will not. GM classifies P0748 as a type D DTC, and per the factory procedure, "the PCM does not illuminate the Malfunction Indicator Lamp." The code stores and the transmission defaults to maximum line pressure, but the dash may stay dark. This is why the harsh shift is frequently the only symptom the driver notices.

Can I keep driving with P0748?

You can, but you should not for long. The transmission is running at maximum line pressure with shift adapts frozen. That protects the clutches from slipping, but it puts high mechanical load through the 2-4 band, the 3-4 clutch pack, and the drums on every shift. The code is cheap to fix; the clutch failure it leads to is not.

Why does it shift hard instead of soft if the solenoid failed?

Because the PC solenoid works in reverse of what most people assume. More commanded current means less line pressure. When the PCM disables the solenoid, current goes to zero and pressure goes to maximum. A failed EPC solenoid on a 4L60E will essentially always produce harsh shifts, never soft ones.

How do I clear P0748 after the repair?

A scan tool clears the DTC from PCM history. Per GM, the PCM also clears the DTC from history on its own if the vehicle completes 40 warm-up cycles without a failure reported, and it cancels the default actions once the fault no longer exists and the ignition has been off long enough for the PCM to power down. Expect shift quality to need a few drive cycles to relearn, since the adapts were frozen while the code was active.
