You are cruising at 45 mph, the truck goes to grab overdrive, and instead of a shift you get a flare - engine RPM climbs, the truck stops pulling, and for a second it feels like somebody knocked it into neutral. Then it drops back to third and drives fine. That is the classic 4R70W no-overdrive complaint, and it is almost never the computer. It is a mechanical or hydraulic failure in the overdrive band apply circuit, and on this transmission it usually traces back to one cheap part.
Shop the parts for this fix
Doing the whole job? 4R70W Master Rebuild Kit - Frictions & Steels, Gaskets & Seals, Filter, Shift Kit, Servo, Solenoids, Bushings (7-Piece) — $448.99 $472.99 (save 5% vs buying separately)
Or grab the individual parts:
- 4R70W Reverse Clutch Steel Plate 1993-Up OEM 76407 — $37.99
- 4R70W Pan Gasket with Seals — $23.99
- 4R70W Transmission Filter 1996-2008 — $21.99
- 4R70W Overdrive Servo Piston — $68.99
Here is how to diagnose it in order, what actually breaks, and what to replace so you are not back under the truck in six months.
Confirm It Is Really Losing 4th Gear
Before you pull anything, do the free test. Per the Raybestos Powertrain tech tip on this exact failure, hitting the overdrive cancel button and having the transmission drop back to third and drive normally confirms you are dealing with a neutral condition on the 3-4 shift, not a general slip. What is happening is that the forward clutch releases on the shift signal as designed, but the overdrive band never applies. Nothing is holding, so nothing is driving - that is your neutral.
That single observation matters because it tells you the failure is on the apply side of the overdrive band, and it points you away from chasing solenoids and wiring.
What Actually Breaks: The Overdrive Servo Snap Ring
The number one cause on the 4R70W is a broken snap ring on the overdrive servo. It is a known weak point. Raybestos documents the teardown plainly: the small end pieces of the snap ring break off, but enough of the snap ring remains to hold the overdrive servo in place. So the servo can still be sitting where it belongs and you would never know from a quick look.
The part that turns a small failure into a no-overdrive condition is where the broken pieces go. Per the same Raybestos teardown, one of the broken end pieces of the snap ring passed through an opening below the servo piston and into the valve body, jamming the servo regulator valve. Once that valve is jammed, the overdrive circuit cannot regulate apply pressure, the band never gets clamped, and you get the neutral flare.
FordMuscle documented the same failure and described the retaining clip as a not-so-small C-clip that holds the overdrive servo in place and is prone to breaking, with the result that the forward clutch released for 3rd gear but the overdrive band did not apply because of the jammed valve. They also make the point every builder learns the hard way: this is a perfect example of an eight dollar part causing a multi-hundred-dollar repair.
Cause Two: Overdrive Servo Regulator Valve Bore Wear
If the snap ring is intact and the valve is free, the next suspect is wear. Per Sonnax, wear at the innermost bore of the overdrive servo regulator valve lets regulated overdrive servo oil leak to exhaust, which prevents proper regulation of the overdrive servo. The wear comes from constant oscillation of the valve in an aluminum bore over tens of thousands of cycles.
Sonnax lists the resulting complaints on 4R70E, 4R70W, 4R75E and 4R75W units as a burned overdrive band, loss of 4th gear, and a 4-3-neutral shift pattern. The diagnostic call is a vacuum test at the indicated ports: if the bore fails to hold the recommended minimum in-Hg, or wear is visible, the bore is done. Sonnax offers two repair paths - the oversized overdrive servo regulator valve kit (76948-59K), which reconditions the bore, and the drop-in overdrive servo regulator kit (76948-29K) that restores sealing across temperature ranges.
Cause Three: Servo Pin Bore Wear in the Case
The third failure is the case itself. The overdrive servo pin wears its bore in the aluminum case, and once that bore is oval the servo cannot build enough pressure to clamp the band properly. The band then slips under load and burns. The fix is not a new band - it is sleeving the bore so the servo has a straight, sealed bore to work against, then replacing the band.
This matters for the I-already-replaced-the-band-and-it-burned-again crowd. If release oil leaks past a worn bore, it can drag the overdrive band and overheat the forward clutches. Fresh friction material in a leaking circuit just buys you a few thousand miles.
The Diagnosis, In Order
- Verify the neutral condition. Press the overdrive cancel button. If it drives normally in third, you have a 3-4 neutral, not a general slip.
- Drop the pan and pull the valve body. Per Raybestos, the first physical step is to see whether the snap ring has shattered and whether the overdrive servo has fallen out of position.
- Hunt the fragments. Look specifically at the servo regulator valve for a lodged piece of snap ring. Removing that fragment restores valve function, but understand the rest of the ring is now a time bomb.
- Vacuum test the servo regulator valve bore. If it will not hold the minimum, the bore is worn and needs an oversized valve or a drop-in kit.
- Inspect the servo pin bore in the case. Oval or scored means a sleeve, not just a new servo.
- Inspect the overdrive band. If it is glazed, cracked, or blued, it has already been slipping and it gets replaced regardless of what caused it.
The Fix: What to Actually Buy
How deep you go depends on what you find, but there is a sane order.

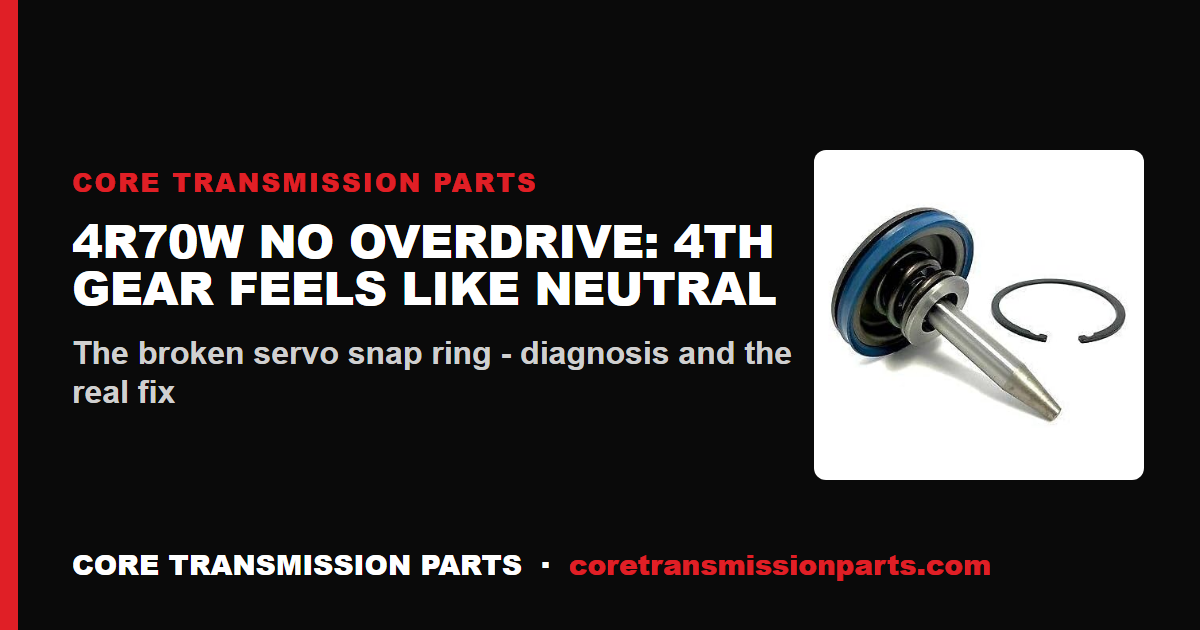

If the snap ring broke, replace the whole servo piston assembly rather than just chasing the ring. A 4R70W overdrive servo piston and snap ring assembly gets you a fresh ring and a piston with good seal surfaces in one shot. Both the Raybestos and FordMuscle writeups land on the same rule: install a new snap ring any time you remove one. Reusing a partially broken ring is how you end up doing the job twice.
If the servo pin bore in the case is worn, you need a 4R70W servo pin bore sleeve. That is the only real repair for a wallowed-out case bore, and skipping it is why replacement bands burn.
If the overdrive band is toasted, replace it with a 4R70W front overdrive carbon band. Carbon holds up better than the stock lining when the truck sees any load or towing.
If the unit is already high mileage and the band is burned, you are far enough in that a 4R70W master rebuild kit is usually the smarter money than a piecemeal repair. Browse the full range of 4R70W transmission parts to build the repair around what you actually found.
Replace While You Are In There
The pan is already off and the valve body is on the bench. Do these now:
- Overdrive servo snap ring and piston - non-negotiable if the ring broke
- Servo apply pin and its O-rings and washer
- Pan gasket and filter
- Valve body separator plate gaskets
- Overdrive band, if there is any glazing or discoloration
- Accumulator springs and pistons, since a broken accumulator spring produces overlapping shift complaints
Cost and Effort Framing
The parts side of a snap-ring-and-servo repair is small money. The labor is what stings, which is exactly the FordMuscle point about a cheap part driving a big bill. Pan and valve body work is doable in a driveway with the transmission in the vehicle - plan a solid afternoon, a drain pan, and a torque wrench. Sleeving a worn servo pin bore is a different animal: that generally means the unit comes out, so at that point you are pricing a rebuild, not a repair.
The judgment call is honest and simple. Low miles, clean fluid, broken snap ring only - fix the servo and drive it. High miles, burned band, brown fluid - pull it and do it right once.
FAQ
Can a bad solenoid cause no overdrive on a 4R70W?
It can cause shift faults, but the specific symptom of the forward clutch releasing while the overdrive band never applies points at the servo and its regulator valve, not electrical control. Start with the mechanical inspection Raybestos describes before you chase solenoids.
Why did my overdrive band burn up again after I replaced it?
Because the circuit that applies it is still leaking. Per Sonnax, wear at the overdrive servo regulator valve bore lets regulated servo oil escape to exhaust, so the band never gets full clamp load. A worn servo pin bore in the case does the same thing. Fix the leak, then the band.
Does this affect the 4R75W too?
Yes. Sonnax lists the burned overdrive band, loss of 4th gear, and 4-3-neutral complaints across 4R70E, 4R70W, 4R75E and 4R75W units. The overdrive apply circuit is shared across that family. For more on this family, see our 4R70W servo upgrade guide for tow rigs.
