P2764 is one of the few 4L80E codes that points at a single specific part before you ever pull the pan. It is a circuit code, not a performance code, which means the transmission control module is not complaining that the torque converter clutch slipped — it is complaining that the electrical circuit driving the TCC pressure control solenoid is reading low. That distinction is the whole diagnosis.

Parts for your 4L80E

4L80E Master Rebuild Kit - Frictions & Steels, Gaskets & Seals, Filter, Shift Kit, Servo, Solenoids (6-Piece) — $246.99

See all 4L80E rebuild kits

Get the parts for this repair
Shop 4L80E Parts →

Here is what P2764 actually means on a 4L80E, how the circuit works, how to test it with a meter in about twenty minutes, and which part fixes it.

What P2764 means

The generic OBD-II definition of P2764 is "Torque Converter Clutch Pressure Control Solenoid Control Circuit Low." Per CarParts.com, the solenoid in question operates a valve that allows hydraulic fluid to flow and apply the converter clutch; when the control module decides conditions are right, it energizes the solenoid to create a mechanical link between engine and transmission and eliminate the slip that wastes fuel.

The GM set condition is narrower than the generic wording suggests. Per AutoCodes, the DTC sets when the Transmission Control Module detects a short to ground on the TCC pressure control solenoid valve control circuit for one second. That is the trigger. Not a slip percentage, not a ratio error — a grounded control wire or a shorted solenoid winding.

It helps to know how the module drives the circuit. AutoCodes describes the arrangement: the TCM varies current to the TCC pressure control solenoid through a low-side driver, while solenoid power is supplied by the TCM through a high-side driver that protects the circuit and components from excessive current flow. Raising current to the solenoid raises oil pressure by closing off the solenoid's exhaust port; lowering current drops pressure by opening that port back up. So the module is not switching the converter clutch on and off — it is metering apply pressure.

That is worth emphasizing on this transmission specifically. The AM General / US Army 4L80E troubleshooting supplement notes that the pulse width modulated TCC solenoid "is different than other TCC solenoids; it runs on 32 hertz and is not an ON/OFF switch." The legacy version of this same fault in that manual is DTC 83, TCC PWM Solenoid Circuit Fault. If you are chasing P2764 on a later TCM-controlled 4L80E application, DTC 83 is the same circuit under an older name, and the factory test procedure still applies.

Symptoms you will actually notice

  • Check engine light, often with no obvious driveability change at first
  • No converter lockup — cruise RPM stays a few hundred higher than it used to at highway speed
  • Converter shudder or a rhythmic vibration around 40 to 55 mph under light throttle
  • Higher fuel consumption
  • Transmission running hotter than normal, because an unlocked converter makes heat
  • Harsh or erratic shifting, stalling in gear, or limp mode in worse cases

Transmission Repair Cost Guide lists stalling while stopped in gear, transmission overheating, and limp mode among the symptoms, and calls the code serious for the simple reason that the module has lost control of converter clutch engagement.

Step-by-step diagnosis

1. Fluid level and condition first

Every source on this code — CarParts.com, Transmission Repair Cost Guide, AutoCodes — puts low or contaminated fluid at the top of the cause list, and it costs nothing to check. Burnt or metal-flecked fluid changes the whole conversation: you are no longer diagnosing a wire, you are diagnosing what put the debris there.

2. Do the factory TCC functional check

The Army manual's procedure: bring the transmission to operating temperature, drive at 50 to 55 mph on light throttle, then lightly touch the brake pedal while maintaining throttle and watch for TCC release and a slight rise in engine RPM. Release the brake, accelerate, and confirm the converter clutch reapplies with a slight RPM drop. This tells you whether anything is happening at the converter at all before you start unplugging things.

3. Measure the solenoid resistance — this is the money test

The Army manual's DTC 83 flow chart is explicit: check resistance between pin S and pin E at the transmission connector; the spec is 10 to 14 ohms. The component resistance chart in the same manual confirms it — TCC solenoid, red wire on pin E (spliced internally to pin E) and black wire on pin S, internal harness circuit 1149C and circuit 1350, 10 to 14 ohms.

Note the important caution from that manual: use only high impedance-type ohmmeters for electrical testing on the TCC circuit. A low-impedance meter can give false readings and damage the circuits.

Read this the way the code reads it. P2764 is a low circuit code triggered by a short to ground. A solenoid measuring well below 10 ohms has a shorted winding and is the fault. A reading of zero or near-zero to case ground is a dead giveaway. An open circuit or a reading far above 14 ohms is a different problem and would generally set a different code.

Do not cross-apply specs between GM units here. The 4L80E shift solenoids are 18 to 24 ohms and the pressure control solenoid is 3.5 to 5.2 ohms in that same chart — only the TCC solenoid is 10 to 14. Widely quoted 19 to 31 ohm figures belong to a different transmission entirely.

4. If the solenoid is in spec, test the wiring

The manual's chart walks it: check continuity from TCM J1 pin X to transmission connector pin S on wire 924A, and from TCM J1 pin j to transmission connector pin E on wires 290D and 291D. If the external wiring passes but the resistance at the connector is wrong, the fault is inside — check continuity between the transmission J1 connector pin S and TCC solenoid connector pin B, and between J1 pin E and solenoid pin A. A failure there means the internal wiring harness, not the solenoid. The manual also notes that if the fuse is open, check the internal wiring harness or solenoid for a short to ground.

The fix: which part, and why

In the large majority of P2764 cases on a 4L80E with clean fluid and intact external wiring, the failed component is the TCC PWM lock-up solenoid itself. It is a wear item that spends its life cycling at 32 hertz, and the winding eventually shorts. Replacing it is a pan-down job on a lift — no teardown, no converter removal.

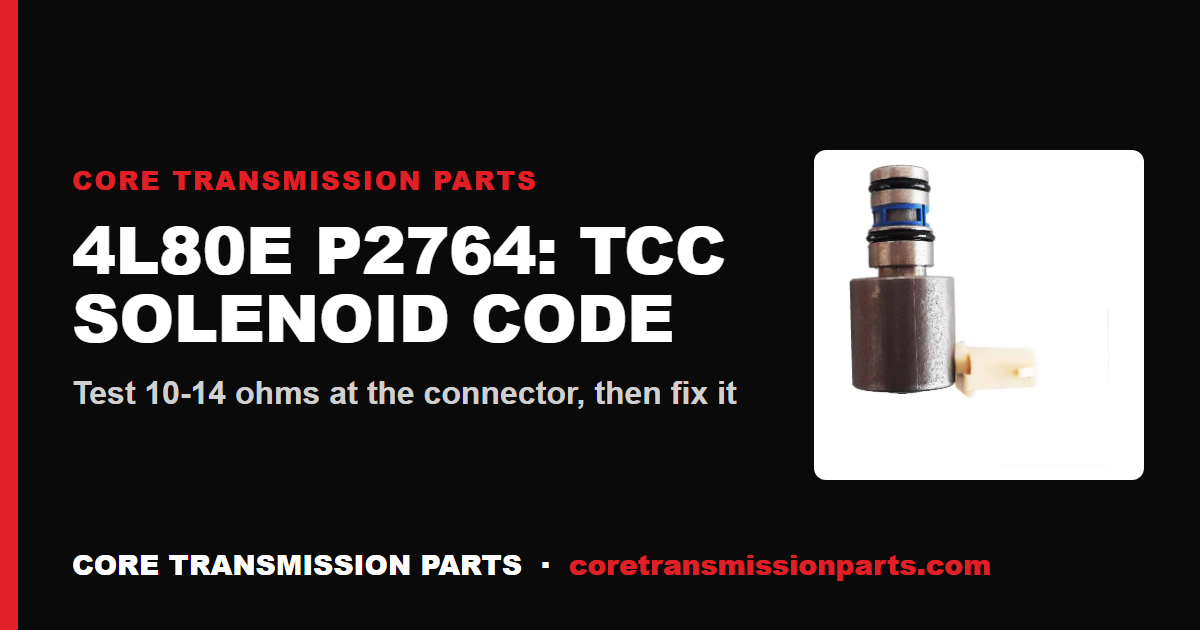

4L80E TCC PWM lock-up solenoid
4L80E TCC PWM Lock-Up Solenoid, 1991-2013 — the part P2764 usually points at.

Two things to check before you call it done. First, if the fluid was burnt or the converter clutch was already shuddering before the code appeared, you may be looking at a converter that has been slipping for a long time. Second, and this is the one people miss: a new solenoid will not hold apply pressure in a worn bore.

Sonnax documents this failure directly for the 4L80-E and 4L85-E. Vehicles with these units "may exhibit problems such as TCC shudder, burnt converter linings, TCC apply and release concerns and related codes," and Sonnax attributes it to "critical pressure loss due to excess wear in the TCC regulator bore." The constant PWM-induced oscillation of the steel regulator valve wears the aluminum bore over time and the module loses the ability to control apply and slip rate. Sonnax's drop-in TCC regulator valve kit 34994-01K addresses mildly worn bores; the oversized 34994-18K kit is for bores worn badly enough to need reconditioning. If you have replaced a TCC solenoid before and are back here again, check the regulator bore.

On later GM applications where the TCC pressure control solenoid is integrated into the control solenoid valve assembly, AutoCodes notes that assembly has no serviceable parts — the whole unit gets replaced. Confirm which arrangement your specific application uses before ordering.

Replace while you are in there

The pan is already off and the fluid is already out. These are the parts that cost you a second teardown if you skip them:

  • Filter and pan gasket — never reuse either. A 4L80E filter and pan gasket kit is the cheapest insurance on the job.
  • The other solenoids — the shift solenoids and the EPC solenoid are the same age and heat cycles as the one that just failed. A full solenoid set saves a repeat visit.
  • Internal wiring harness — if any continuity check was marginal, replace it now. Chasing an intermittent internal harness later means dropping the pan again.
  • Fluid — a full fill of the correct spec, not a partial top-off of what came out.

Cost and effort framing

P2764 is one of the better outcomes among 4L80E codes. The diagnosis is a multimeter and a lift. The repair on a classic 4L80E is pan-down: drain, drop the pan, swap the solenoid, new filter and gasket, refill. Most competent DIYers can do it in an afternoon; a shop treats it as a few hours of labor plus parts.

The expensive version is the one where P2764 was ignored. An unlocked converter runs hot, and heat is what kills clutches and seals. If the code has been on for months and the fluid is dark, budget for the possibility that the converter and the friction material behind it also need attention. Browse the full 4L80E parts catalog if the teardown goes deeper than the pan.

If you are also seeing a companion code, read our writeup on 4L80E P2762 — it is the same solenoid circuit reported as a performance fault rather than a low-circuit fault, and the two often show up together.

Frequently Asked Questions

Can I keep driving with a P2764 code?

Short trips, yes. Long-term, no. With the converter clutch out of the picture the transmission generates more heat than it was designed to shed at highway speed, and Transmission Repair Cost Guide lists transmission overheating and limp mode among the code's symptoms. Heat is what turns a solenoid replacement into a rebuild.

What resistance should a 4L80E TCC solenoid read?

10 to 14 ohms measured between pin S and pin E at the transmission connector, per the component resistance chart in the AM General / US Army 4L80E troubleshooting supplement. Use a high-impedance meter only. Do not use the 4L80E shift solenoid spec of 18 to 24 ohms or the pressure control solenoid spec of 3.5 to 5.2 ohms for this test.

I replaced the TCC solenoid and P2764 came back. What now?

Two likely paths. If the code returned immediately, suspect the wiring — a chafed circuit 924A or an internal harness shorted to ground will fail a new solenoid the same way. If the code returned after the converter started shuddering again, look at the TCC regulator valve bore; Sonnax attributes exactly this repeat pattern to bore wear allowing loss of apply pressure, and offers the 34994-01K and oversized 34994-18K valve kits for it.
